What Makes a Sauna Heater Pause Before Reaching Temperature?
Key Takeaways
A sauna heater that pauses before reaching temperature may be obeying its controller, not failing.
HUUM's UKU 4.2 manual documents a pause after every 30 minutes of heating, with an on/off setting.
Harvia's Xenio CX170 has a pause time setting that, when enabled, refuses a remote start for 6 hours after switch-off.
Glass counts as extra volume: Harvia's Cilindro manual adds 1.2 m³ per square metre, HUUM's DROP manual 1 m³.
Rule out seven documented causes before calling the heater faulty.
A heater that stops halfway through heat-up looks broken to the person standing in a lukewarm sauna. At Wood Architects we fit Harvia and HUUM heaters and check each sauna at our Klaipėda facility before it ships. That check can't see your customer's fuse board or their first frost. The seven checks below start with the controller manual, not the toolbox.
What Makes a Sauna Heater Pause Before Reaching Temperature?
A sauna heater can pause before reaching temperature without any part being broken. HUUM's and Harvia's controllers stop or limit heating on purpose. The documented reasons are a programmed pause, an expired on-time, an open door switch, a blocked remote start and a tripped overheat protector. HUUM's UKU 4.2 manual describes a pause after every 30 minutes of heating. The other causes are physical: sensor position, heater output against room volume and glass, the supply, and the stones. Rule those out before anyone says fault.
Electrical checks belong to a qualified electrician. This article doesn't replace one.
Which rules come from the standard, and which from the controller?
The product safety standard is IEC/EN 60335-2-53. The IEC's summary says it covers electric sauna heating appliances rated up to 20 kW. They're meant for homes and for public saunas in blocks of flats, hotels and similar locations. The full text is sold, not published. So we credit the standard only with what a manufacturer's manual credits to it.
Two things qualify. Harvia's Xenio CX170 manual (section 2.5) says the standard allows remote control once the heater or the sauna door has a safety or door switch. HUUM's UKU 4.2 manual (page 28) says the thermal fuse in its safety sensor breaks at the unsafe temperature level the standard specifies.
Everything else here we report as controller behaviour, because the manuals name no standard for it. The standard may still sit behind some of it, and we haven't read the full text. It also changes between versions. The earlier UKU 4.1 manual puts the first pause after 90 minutes of heating. The UKU 4.2 manual puts one after every 30.
Both controllers cap a private sauna at 6 hours of on-time without naming a clause, so we report that as a setting. We checked every manual cited here on 7 October 2026.
Which controller rules stop heating on purpose?
Three of the seven checks sit in the controller.
1. Pauses and time limits
HUUM's UKU 4.2 manual (page 25) gives the reason for its pauses. When a heater is too weak for its room, or the ventilation is wrong, it runs at full capacity continuously. The pauses protect nearby surfaces. The setting is under Safety Settings, then Pauses. That one setting is enough to stop a heat-up short.
UKU 4.2 limits on-time to 3 or 6 hours for private saunas, 12 for semi-public and 18 for public (page 20). Harvia's Xenio CX170 allows 1 to 6 hours for family saunas (section 1.2). Harvia's pause time, when enabled, refuses a remote start within 6 hours of the last switch-off and shows rESt.
2. Door switch and remote start
UKU 4.2 won't start the heater with the door open, and stops a running cycle (page 8). In HUUM's commissioning test, which the manual reserves for a licensed electrician, the relays disconnect within 5 to 10 seconds and the screen shows Door open (page 17).
Remote start has a second lock. On UKU 4.2 with Remote start safety enabled, opening the door cancels the confirmation given on the panel (page 23). With a door switch fitted, the Xenio CX170 does the same and shows door OPEn (section 2.5).
3. Overheat protection
On the Xenio CX170, a tripped overheat protector cuts heater power and shows E3. Harvia's instruction is to find the reason before pressing the reset button, and the same manual leaves all service operations to professional maintenance personnel (section 1.3).
Harvia's Cilindro manual (section 3.5) lists what to look for: crumbled and compacted stones, long unattended running, a displaced or broken sensor, a knock. One line matters for winter deliveries. The protector can also trip below −5 °C in storage or transport. On Cilindro PC, PC-H and PC-F models the reset button sits inside the heater's connection box, and only a person authorised to carry out electrical installations may reset it (section 3.5.2).
HUUM's UKU 4.2 uses a thermal fuse in the safety sensor. When it breaks, the panel also shows E3 and the sensor must be replaced (page 28). Same code, different remedy.
Which physical causes look like a pause?
The other four are in the room and the supply.
4. Sensor position
The controller knows only what its sensor reports. Harvia's Xenio manual (section 3.3) keeps the sensor at least 1,000 mm from an omnidirectional air vent, because moving air cools it and distorts the reading.
HUUM's UKU 4.2 manual adds that poorly insulated outdoor saunas in cold climates may read low at the bench sensor. It offers a 5% or 10% calibration for that (page 21).
5. Heater output against volume and glass
Glass counts as extra volume. Harvia's Cilindro manual (section 2.3) adds 1.2 m³ for each square metre of non-insulated wall. HUUM's DROP manual (page 4) adds 1 m³.
Say a room has 5 m² of glass. That's 5 × 1.2 = 6 m³ extra on Harvia's rule and 5 × 1 = 5 m³ on HUUM's. Compare the total with the volume range printed for the heater.
UKU 4.2's failure detection stops a heat-up that isn't getting anywhere. With only the safety sensor fitted, a start below 40 °C has to gain 40 °C within 60 minutes. With the bench sensor fitted as well, it has to gain 20 °C. If it doesn't, the heater shuts off with E6 (pages 24, 25 and 27). The glass side is covered in Will Your Panoramic Glass Sauna Work in Winter?
6. Supply and fuses
Harvia's Cilindro list for a slow room (section 1.7) starts with the fuses, then asks whether all heating elements glow. HUUM lists the DROP 6 with three 2 kW elements on a 400 V three-phase connection (pages 7 and 8). Ask the electrician to confirm every phase at the heater. On UKU 4.2, check the heating algorithm first. Its Smart setting switches elements off one after another before the target temperature is reached (page 20). How Should Your Electrician Wire an Outdoor Sauna Heater? covers the rules they work to.

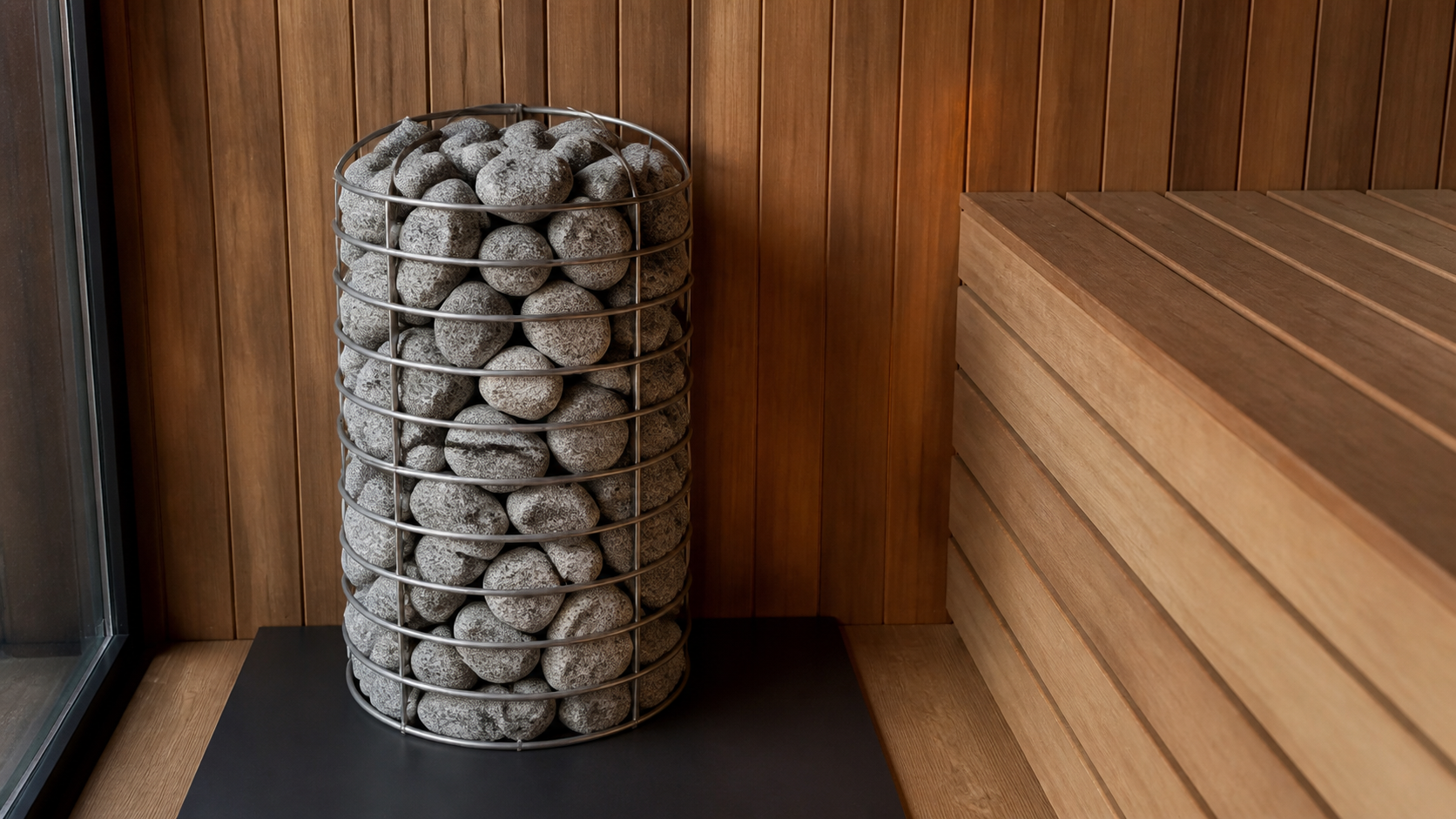

7. Stones and air flow
Stones move. Harvia's Cilindro manual says stones piled too tightly or settled with time can hinder the air flow through the heater and reduce heating efficiency. It asks for re-piling at least once a year. HUUM's DROP manual asks for rearranging after 200 hours of use (page 9).
A sauna that slowed down a season after handover may need its stones re-piled, not a new heater.
What should you check before calling it a fault?
Before you drive out, ask for three things: the controller model and version, the exact message on the display, and how long the heater ran before it stopped. The last column of the table is our own judgement as a manufacturer. It isn't a HUUM or Harvia statement.
What the customer reports | Likely cause | Check on site | It's a real fault when |
|---|---|---|---|
Heats, stops, starts again, or won't restart remotely | 1. Programmed pause, expired on-time or remote pause time | Controller version, pause setting, maximum on-time, hours since switch-off | It stops below the set temperature with on-time left, outside the documented pauses, with no message |
Stops when the door opens, or the app start is refused | 2. Door switch open, or remote start not confirmed | Door message, magnet alignment, remote start confirmed again | Door message stays with the door shut, the sensor aligned and its cable intact |
No heat, E3 on the panel | 3. Overheat protector tripped, or safety sensor fuse broken | Stones, sensor position and cable, long unattended running, storage below −5 °C (Harvia Cilindro) | It trips again once the cause is removed. On HUUM a broken fuse means a new sensor |
Display and the customer's thermometer disagree | 4. Sensor position, or air flow over the sensor | Sensor distances against the manual, then calibration | A sensor error code stays with the wiring intact |
Heat-up takes far longer than an hour, or E6 on UKU 4.2 | 5. Output too low for the calculated volume, or heat escaping | Volume with the manual's glass rule. Door, windows and drying vent closed | Output matches the volume, the room is closed and it's still slow |
Slow heat-up, some elements stay dark | 6. Fuse, supply line or heating element | Electrician checks fuses, connections and whether every element glows | An element stays dark during heat-up from cold, well below the set temperature, with the supply confirmed |
Fine at handover, slower months later | 7. Stones settled, crumbled or piled too tightly | With the heater off and cold: stones re-piled to the manual, broken ones replaced, elements covered | No improvement after correct re-piling |
STOP: don't reset an overheat protector or switch off a safety pause to make a symptom go away. Find the cause first, and leave the reset to the person the manual authorises.
You don't need all seven on every call. At the next handover, write the controller model and version on the handover sheet, with the manual page for its pause setting. If the checks end in a new heater, the swap has its own list: What Must Be Rechecked When a Sauna Heater Is Replaced After Handover?
A setting found on the phone costs you nothing. A working heater swapped in error costs you a visit.
Frequently asked questions
Is a sauna heater that keeps switching off broken?
Not necessarily. Harvia's Xenio CX170 manual lists three ordinary reasons for a heater turning off: the button is pressed, the on-time runs out or an error occurs. An open door switch or a tripped overheat protector also stops heating by design. Read the display first.
Can you turn off the heating pause on a HUUM UKU controller?
Yes. HUUM's UKU 4.2 manual places the setting under Safety Settings, then Pauses, and asks for the last four digits of the main module's MAC code. HUUM doesn't recommend turning the pauses off, and neither do we. Find out why the heater needs so long.
How long should an electric sauna take to heat up?
About an hour, when the heater output suits the room and the room is properly insulated. Harvia's Cilindro manual and HUUM's DROP manual both give that figure. A room that needs much longer deserves a volume calculation that includes its glass.
Why won't a sauna start from the app?
Remote start is deliberately guarded. On HUUM's UKU 4.2, opening the door cancels the safety confirmation given on the panel. On Harvia's Xenio CX170, an open door switch, an active panel lock or the 6-hour pause time blocks a remote start.
Does a glass wall mean a sauna needs a bigger heater?
Glass raises the output a room needs. Harvia's Cilindro manual adds 1.2 m³ to the room volume for each square metre of non-insulated wall, glass included. HUUM's DROP manual adds 1 m³, and states that HUUM's warranty isn't valid if heater output doesn't correspond to the calculated volume.
